Field Geology 2009:
Exploring the Flint Hills of Kansas,
Chase County Geology
www.geospectra.net/fieldgeology/kansasrocks.htm

Emporia State University
Susan W. Aber

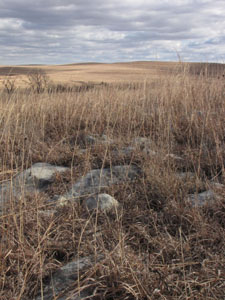

Flint Hills winter scene
Photo by J.S. Aber;
Photo date January 30, 2009

Chase County is situated in the Flint Hills physiographic province in eastern Kansas. Physiographic provinces categorize Kansas by overall landscape, vegetation, and physical geology. The Flint Hills are gently rolling hills, covered in a tallgrass prairie, that separate the oldest from the youngest rocks in Kansas. General physical geology of the state is shown on a map from the Kansas Geological Survey (Figure 1-right click on the image and see the larger version by chooosing to open in a new window or tab). Chase County is marked with a star. A geologic map displays bedrock formations on or near to the surface of Earth by geologic age as if all human-made structures, natural soils and plants were invisible. The horizontal distribution of rocks is layered over a map distinguishing county political boundaries and the geologic age in shown in the legend on the left. To envision what the rock formations look like below the surface a vertical slice, called a geologic cross section, is shown below the map. This portion of Kansas geology is taken from a line labeled A-A' that crosses Kansas in an east-west direction, approximately following the Interstate 70 roadway.

In this generalized map, Chase county is covered in a pale blue color, which stands for Permian age rock over 299 million years old. In the geologic cross section, this blue color shows that a thick sequence of rocks was deposited in the Permian. Assuming the rock layers were horizontal at the time of deposition, the cross section shows that they were subsequently tilted and dip gently to the west.

General Geologic Map of Kansas
Figure 1. Generalized geologic map of Kansas.
Chase County marked with a star.
Image taken from Kansas Geological Survey
www.kgs.ku.edu/General/geolSheetMap.html

Kansas Geologic Map
Image taken from Kansas Geological Survey but no longer found online.
See updated map at www.kgs.ku.edu/General/Geology/state23.html
The geologic past of any region may be interpreted from the type of rocks, fossils, and minerals present. While the general geology map provides a time frame for Chase county bedrock, greater detail is needed. A Kansas geologic map taken from the Kansas Geological Survey with more detail is shown in Figure 2 (right click on the image and see the larger version by chooosing to open in a new window or tab). Here the Permian System is subdivided into groups and Chase county has rocks from the Council Grove and Chase Groups. These groups are comprised of limestone and shale that alternate in rock layers that are stacked in succession and referred to as layer-cake stratigraphy. Additionally, many of these limestones are all used as building stones in the state of Kansas and beyond.

The rock layers of groups are further subdivided in geologic time as shown by this detailed geologic map of Chase county (see Figure 3 - right click on the image and see the larger version geologic map of the county that is detailed and up-to-date; chooose to open in a new window or tab).

For the rocks in Chase county, these rock layers are subdivided into formations and members, which are described at a Kanasas Geologic Survey publication, Stratigraphic Succession in Kansas, edited by Doris Zeller (1968), now online at www.kgs.ku.edu/Publications/Bulletins/189/08_perm.html. Limestones are rich with marine fossils and the rocks layered in sequence during the Permian show Chase county was covered by a shallow sea that experienced changes in sea level, which created a transgression and regression of the sea many times. Kansas is geologically famous for these past repeating environments of deposition, referred to as cyclothems, which were defined by a famous Kansas geologist, R.C. Moore (1964).

A cyclothem is defined by a triad of three sedimentary rocks, limestone-shale-limestone. This repeating pattern of rock represents the sea transgressing and regressing over the surface of Earth, which is a result of worldwide change in sea level. The Council Grove Group has over 300 feet of limestones and bright green, red, and gray shales. Some of the rocks in this group include the Cottonwood Limestone, Florena Shale, and Morrill Limestone members of the Beattie Formation, which lies above the Eskridge Shale. The Chase County Group is comprised of another 300 feet of limestones and bright green, red, and gray shales. Some of the limestone members of this group include the Florence Limestone, Oketa Shale, and Fort Riley Limestone members of the Barneston Formation, which lies above the Blue Springs Shale. Eskridge Shale and Beattie Formations taken together make up a minor cyclothem, which can be up to 40 feet thick. The Barneston Formation and Blue Springs Shale make up a major cyclothem, which is up to 100 feet thick.

Chase County Kansas Geologic Map
Figure 3. Geologic map of Chase County, Kansas.
Image taken from Kansas Geological Survey
from an earlier website not available today.
To see up-to-date state geology map visit
www.kgs.ku.edu/General/Geology/County/abc/chase.html
In the county geologic map it is easy to see the tributary and main streams flowing through the county tributaries of the Cottonwood River are responsible for much of the erosion of the land surface to expose bedrock. On the map shown above, rivers are represented by the bright blue meandering lines and the white area surrounding the waterway represents river bottom alluvium or the current flood plain. The yellow color represents terrace deposits, which were former flood plains and show a general pattern of river migration to the south and southeast in this county. And so on...you modify what information fits the theme of your report!


Image taken from www.kgs.ku.edu/Current/
2008/sawin/index.html
.

I hope this gives you some good ideas for creating a report to accompany your collections. Each specimen should have an accompanying label or the metadata that goes with the sample. I have sent you a suggested template for the labels. Also, a website used in the past for GO324 Rocks and Minerals that might be of interest is www.emporia.edu/earthsci/amber/go324/collection.htm. Remember for this collection, you can include minerals and fossils.

As suggested in class, it would be best to have specimens representing the following rock member/formation in your collection from Kansas:

    1. Florence Limestone Member (abbreviated Ls. and Mbr.), Barneston Ls. Formation (abbreviated Fm.), Chase Group, Lower Permian
    2. Kinney Ls. Member (abbreviated Mbr.)
    3. Wreford Ls. Fm.
    4. Speiser Sh. Fm. (red layer at second mapping area may contain petrified wood)
    5. Funston Ls. Fm.
    6. Blue Rapids Sh. Fm.
    7. Crouse Ls. Fm.
    8. Middleburg Ls. Mbr.
    9. Eiss Ls. Mbr.
    10. Morrill Ls. Mbr.
    11. Cottonwood Ls. Mbr.
    12. Eskridge Sh. Fm. (red petrified wood possible)
    13. Neva Ls Mbr.
    14. Burr Ls. Mbr.
These suggested rock units are shown in the figure above, which I pulled out of the larger image found at:
Sawin, R. S., Franseen, E. K., West, R. R., Ludvigson, G. A., and Watney, W. L. (2008). Clarification and changes in Permian stratigraphic nomenclature in Kansas. Current Research in Earth Sciences: Kansas Geological Survey, Bulletin 254, part 2, online at www.kgs.ku.edu/Current/2008/sawin/index.html.

Finally, some links are given below for Kansas materials. Do not forget to cite and reference throughout your report. If you have any questions about good writing to avoid plagiarism, obtain the following resource:
Harris, R. A. (2005). Using sources effectively strengthening your writing and avoiding plagiarism (2nd ed). Los Angeles, CA: Pyrczak Publishing (www.virtualsalt.com/usead.htm).

Weblinks of Interest

Physiographic Map of Kansas,
www.kgs.ku.edu/Physio/physio.html
General Geologic Map of Kansas,
www.kgs.ku.edu/General/geolSheetMap.html
DEM Shaded Relief Map of Kansas,
www.kgs.ku.edu/General/demMap.html
Color Elevation Map of Kansas,
www.kgs.ku.edu/General/elevatMap.html
Groundwater and Precipitation
Map of Kansas,
www.kgs.ku.edu/Hydro/hydroSheetMap.html
Kansas by County Data Explorer,
www.kgs.ku.edu/DB/kbc.html
Chase County,
www.kgs.ku.edu/General/Geology/Chase/index.html
Kansas Springs,
www.kgs.ku.edu/Publications/pic11/pic11_1.htm
Public Land Survey in Kansas,
www.kgs.ku.edu/Publications/pic20/pic20_1.html
Geologic Mapping in Kansas,
www.kgs.ku.edu/Publications/pic4/pic4_1.html
Earthquakes (Kansas included!),
www.kgs.ku.edu/Publications/pic3/pic3_1.html
Other KGS Public Information Circulars,
www.kgs.ku.edu/Publications/pubCirculars.html
Construction Material Inventory
www.kgs.ku.edu/CMI/index.html
Ancient Life in Kansas
http://www.kgs.ku.edu/Publications/ancient/rep01.html
From Sea to Prairie,
www.kgs.ku.edu/Publications/primer/primer01.html
Aber, J.S., Surficial geology of Butler County
Kansas,KGS Open-file Report 1991-48,
www.kgs.ku.edu/Publications/OFR/1991/OFR91_48/
Geologic map of Chase County, Kansas,
www.kgs.ku.edu/General/Geology/County/abc/chase.html
Geologic map of Morris County, Kansas,
www.kgs.ku.edu/General/Geology/County/klm/morris.html
Permian system stratigraphy in Kansas,
www.kgs.ku.edu/Publications/Bulletins/189/08_perm.html
Clarification and changes in Permian
stratigraphic nomenclature in Kansas-2008,
www.kgs.ku.edu/Current/2008/Sawin/index.html
Stratigraphic succession in Kansas,
www.kgs.ku.edu/Publications/Bulletins/189/index.html
Kansas Rock Column, Paleozoic Rock,
www.kgs.ku.edu/Publications/Bulletins/89/06_pale.html
Symposium on Cyclothems, R.C. Moore, 1964, and more
www.kgs.ku.edu/Publications/Bulletins/169/index.html
Geologic history of Kansas,
www.kgs.ku.edu/Publications/Bulletins/162/index.html
Kansas Geologic Timetable,
www.kgs.ku.edu/Extension/geotopics/timeChart.html
Flint Hills Physiographic Province,
www.kgs.ku.edu/Extension/flinthills/flinthills.html
Fossils of Kansas,
www.kgs.ku.edu/Extension/KSfossils.html
Fossils of Kansas map/poster,
www.kgs.ku.edu/Publications/Books/2002/Fossil/
Rocks and Minerals,
www.kgs.ku.edu/Extension/KGSrocks.html
Other GeoKansas,
www.kgs.ku.edu/Extension/home.html
Kansas Photo Library,
www.kgs.ku.edu/Images/DB/index.html
Kansas Industrial Mineral Producers,
www.kgs.ku.edu/Magellan/Minerals/index.html
Interactive Geologic Map of the
Tallgrass Prairie National Preserve,
geoportal.kgs.ku.edu/tallgrass/
Ecoregions of Kansas, front poster
and
back of poster!
Now it is time to move onto Colorado! Exploring the Raton Basin and Southern Rockies of Colorado, www.geospectra.net/fieldgeology/coloradorocks.htm. Go collecting!
